Kyntronics Electro-Hydraulic Actuation

Kyntronics is a manufacturer of electro-hydraulic actuators, creating products to address the limitations of hydraulic actuators and electro-mechanical ball screw and roller screw actuators. Their core philosophy is to 'develop and produce products that improve the performance of our customer's machines and provide strong support prior to and after installation.

Kyntronic products are designed to offer higher precision control in automated manufacturing processes. These applications include but are not limited by:

The SHA offers significant advantages compared with hydraulic cylinder actuators or high-force Electro-Mechanical ball screw / roller screw actuators including:

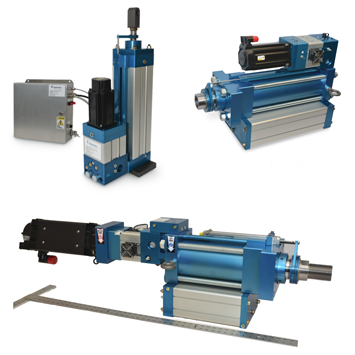

S-Series SMART Hydraulic Actuators

The S-series SMART Hydraulic Actuator (SHA) combines proven technologies into an innovative new actuation product. Features Include:

  • High-Precision Brushless Servo Motor
  • Servo-Controlled, Precise Displacement, Bi-Directional Variable Speed Pump
  • Manifold with Integral Valve Controls
  • Heavy-Duty Rod / Cylinder with Patent-Pending Rod Compensation
  • Servo Drive / Motion Controller
  • Fieldbus Interface
  • IoT Compatible
  • High-Resolution Position Sensor
  • Optional Pressure Sensor for Force Control Operation

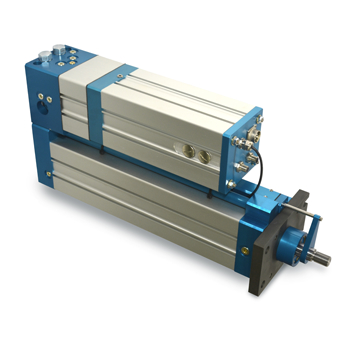

E-Series SMART Hydraulic Actuators

Compact All-In-One Electro-Hydraulic Actuation Solution for Pneumatic Cylinder and Electro-Mechanical Actuator Upgrades. The E-series SMART Hydraulic Actuator (SHA) is a fully-integrated actuator with cylinder, motor and drive that is ideal for upgrading from pneumatic cylinders or electro-mechanical actuators to a higher-performance solution.Features Include:

  • Low-Voltage DC Brushless Servo Motor
  • Servo-Controlled, Precise Displacement, Bi-Directional Variable Speed Pump
  • Manifold with Integral Valve Controls
  • Heavy-Duty Rod / Cylinder with Patent-Pending Rod Compensation
  • Integral Servo Drive / Motion Controller
  • High-Resolution Position Sensor
  • Optional Pressure Sensor for Force Control Operation
  • IP68 Totally-Enclosed Option

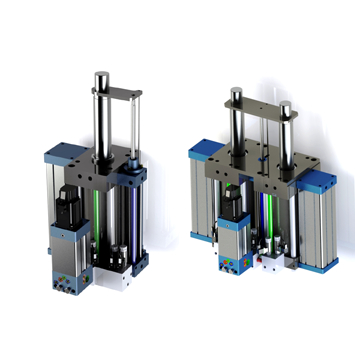

H-Series SMART Hydraulic Actuators

The Kyntronics H-series High Speed / High Force SMART Hydraulic Actuator (SHA) combines a high-speed cylinder, a high-force cylinder, servo-driven power unit, servo motor and drive/motion controller into a fully integrated All-In-One actuation package that saves money and provides precision control.

The H-series is ideal for applications such as metal fabrication presses, injection molding toggle clamping mechanisms and others that have a longer stroke at low-load followed by a shorter, high load stroke. Features Include:

  • High-Speed Cylinder for fast extend/retract operation
  • High Force Cylinder for the high-load component of the cycle
  • Compact / Integrated Accumulator
  • Precision Controlled Brushless Servo Motor
  • Servo-Controlled, Precise Displacement,Bi-Directional Variable Speed Pump
  • High-Resolution Position Sensor
  • Pressure Sensor for Force Control Operation
  • Manifold with Integral Valve Controls
  • Servo Drive / Motion Controller Package

EMA Series Electro-Mechanical Linear and Rotary Actuators

Kyntronics' Electro-mechanical actuator (EMA) products are available in both linear and rotary configurations and include integrated servo electronics for precise position, force and speed control.

Features Include:

  • Linear configurations from 10 to 1,000 Lbf (45 - 4,500 N)
  • Rotary configurations from 5 to 2,400 inch-pounds (0.6 - 270 Nm)
  • Brushless servo motors with on-board electronics
  • Accurate positioning up to 0.001 " (0.03mm)
  • Coordinated motion between multiple actuators (up to 32 axis)
  • Communications-over-power (2-wire network)
  • Patented auto-addressing and auto-calibration
  • Manual release option
  • Brake for holding position
  • Electronic I/O interfaces: discrete I/O, analog I/O, serial communication, communication buses
