Particulate Filters

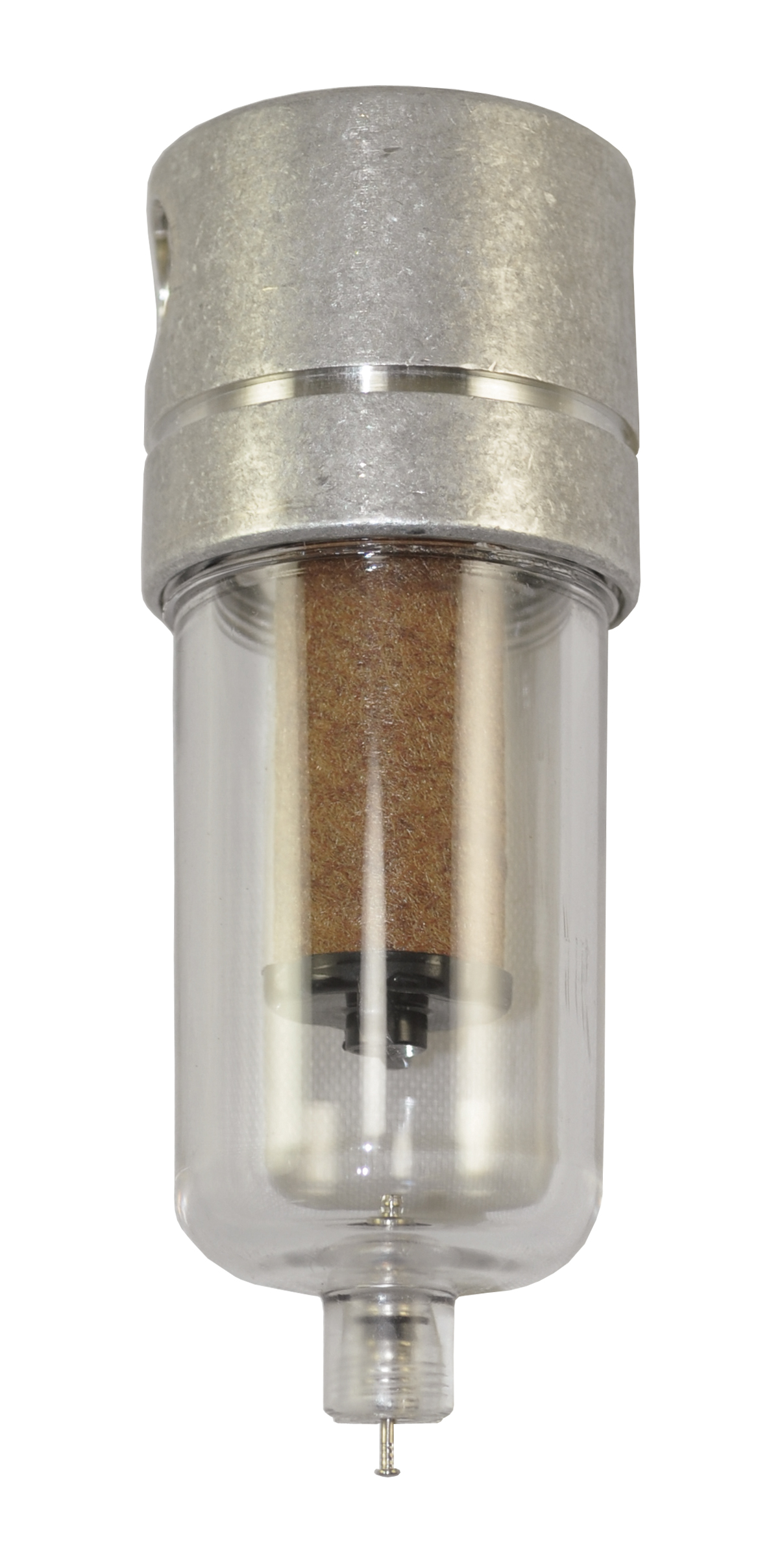

Miniature Series
- Dense pack element design ensures long element life with minimal pressure drop
- Threaded bowl for ease of maintenance
- 20 micron element standard, 10 and 5 available
- Manual drain standard, impulse drain available
Compact Series
- Whirl disk creates centrifugal action for maximum water and particulate removal
- Dense pack element design ensures long life with minimal pressure drop
- Tie-rod construction for maximum stability
- 20 micron element standard, 10 and 3 available
- Manual drain standard, float or impulse available
Standard Series
- Whirl disc creates centrifugal action for maximum water and particulate removal
- High flow with greater bowl capacity (8 oz.)
- Dense pack element design ensures long life with minimal pressure drop
- 20 micron element, 10 and 5 available
- Manual drain standard, float or impulse available

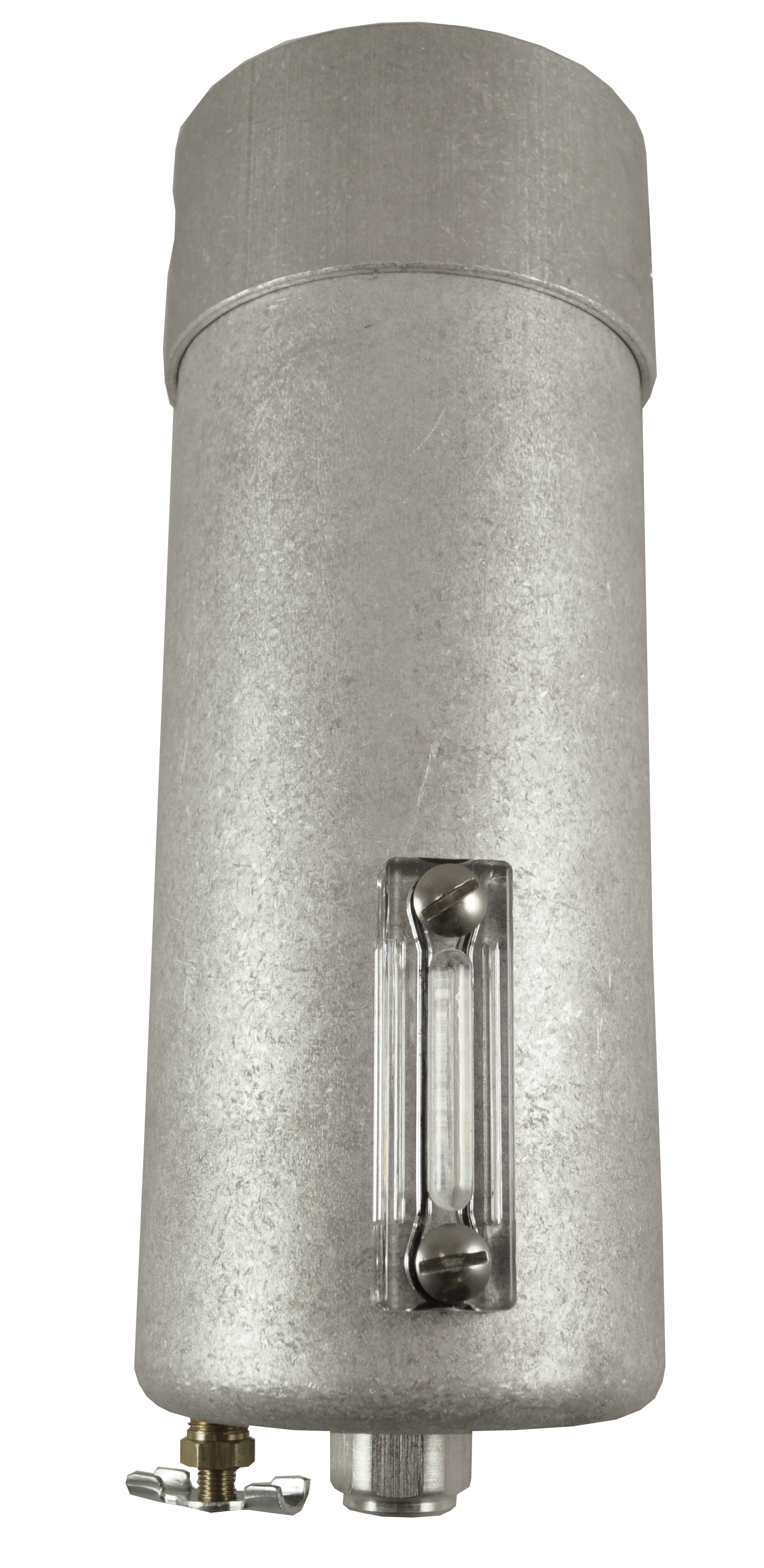

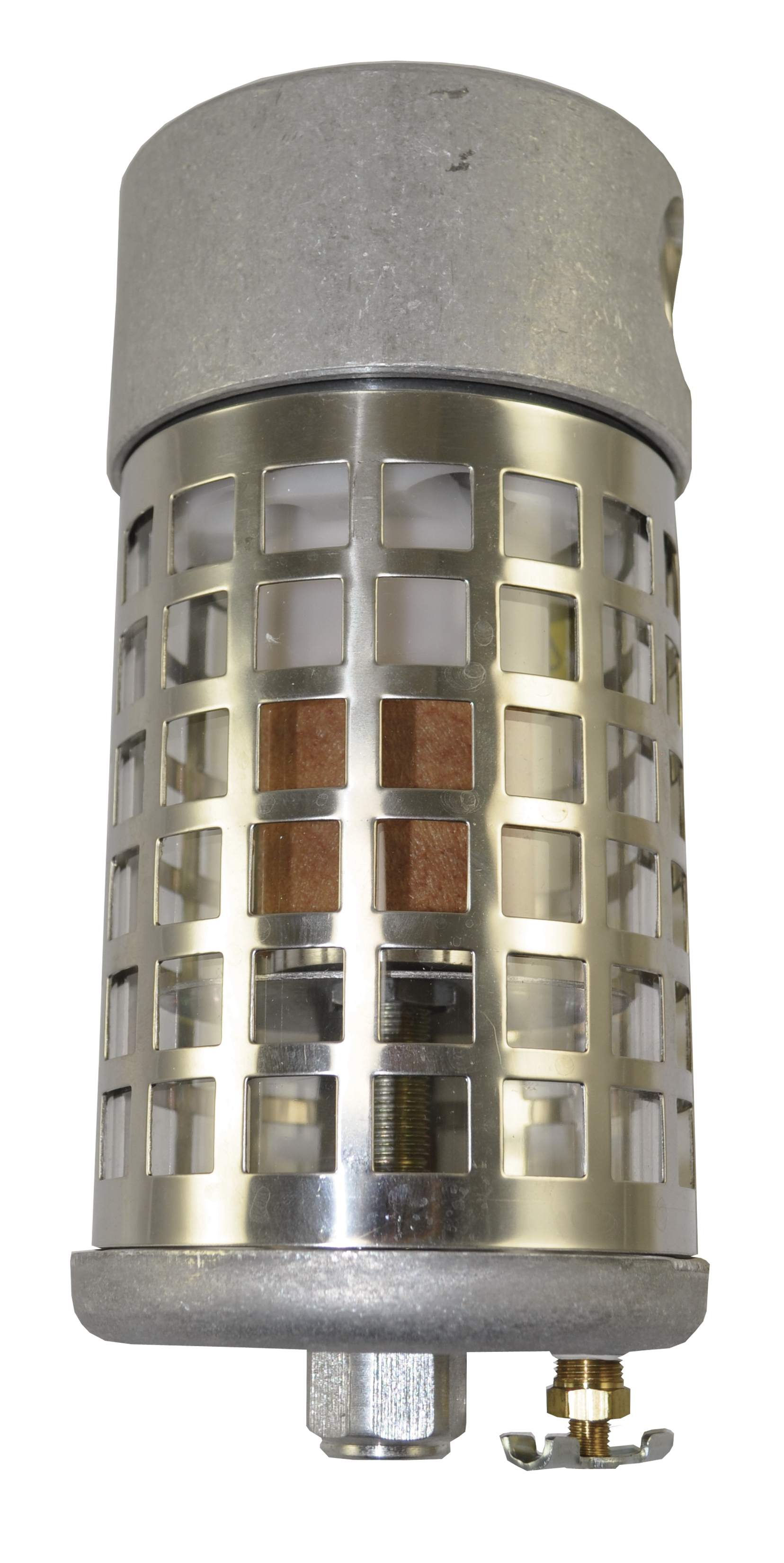

Heavy Duty Series
- Excellent water removal characteristics
- High flow with large bowl capacity
- Heavy duty machined aluminum for rugged applications
- Dense pack element design ensures long life with minimal pressure drop
- Internal float drain or external impulse drain
- 20 micron elements standard, 100 and 3 available
High Flow And Mainline Series
- 3.0 Micron element
- High flow with minimal pressure drop
- 1.0 PSI δP at rated flow
- Available with manual or float drain
