Stainless Steel Air Prep

Monnier offers a line of particulate filters, coalescing filters, regulators and filter/regulators in 316 Stainless Steel. Designed to withstand caustic solutions, harsh operating conditions and other demanding applications, the Monnier stainless line is ideal for the following industries:

204S-3200 Stainless Steel Series

  • Miniature Particulate Filters
  • NACE Mr0175 Compliant
  • 316 SS housing and internal components
  • Excellent water and particulate removal efficiency
  • Threaded bowl and element retainer for easy maintenance
  • Bowl seal held captive
  • 20 micron element standard, 10 & 5 available
  • Manual or automatic drains
  • Whirl disc design creates high centrifugal force with minimal pressure drop
  • 1 once bowl capacity
  • High Flow: 25 SCRM @ 80 PSIG with 7 PSI δp
  • Maximum Pressure: 250 PSI
  • Maximum Temperature 200 °F

204-3209 Stainless Steel Series

  • Miniture Coalescing Filters
  • NACE Mr0175 Compliant
  • 316 SS housing and internal components
  • Removes more that 99.95% of oil and dirt from air lines
  • Threaded bowl and element retainer for easy maintenance
  • Bowl seal held captive
  • 0.3 micron element standard, 0.1 available
  • Now avaiiable with carbon elements
  • Manual or automatic drains
  • 1 ounce bowl capacity
  • Maximum Pressure: 250 PSI
  • Maximum Temperature: 200 °F

205S-1200 Stainless Steel Series

  • 1/2” Particulate Filters
  • NACE MR0175 Compliant
  • 316 SS housing and internal components
  • Excellent water and particulate removal efficiency
  • Threaded bowl and element retainer for easy maintenance
  • Bowl seal held captive
  • 20 micron element standard, 10 & 3 micron available
  • Manual or automatic drains
  • Whirl disc design creates high centrifugal force with minimal pressure drop
  • 8 ounce bowl capacity
  • High Flow: 25 SCRM @ 80 PSIG with 7 PSI δp
  • Maximum Pressure: 250 PSI
  • Maximum Temperature 200 °F

205S-1209 Stainless Steel Series

  • 1/2” Coalescing Filters
  • All metal components are 316 SS
  • Removes liquid and sub-micron solids
  • 0.3 micron element remoces 99.97% of dirt and oil from air
  • 0.01 micron element removes 99.995% of dirt and oil from air
  • Also available with carbon elements
  • Available with manual, float or impulse drain
  • Threaded bowl for ease of maintenance
  • 8 ounce bowl capactiy
  • Pressure rating: 250 PSIG
  • Temperature rating: 0-200 °F

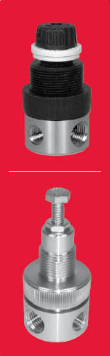

101S-3000 Stainless Steel Series

  • Miniature Regulators
  • NACE MR0175 Compliant
  • All metal components are 316SS
  • Available with stainless steel or Acetal bonnet with locking ring
  • Diaphragm design for greater accuracy, responsiveness and repeatability
  • Fluorocarbon seals
  • Available in relieving or non-relieving
  • Relieving bonnet is designed without relief hole for greater protection in harsh environments
  • Maximum presser: 250 PSI
  • 10-150 PSI option
  • Maximum temperature: 200 °F

104S-1000 Stainless Steel Series

  • Miniature Particulate Filters
  • NACE Mr0175 Compliant
  • 316 SS housing and internal components
  • Excellent water and particulate removal efficiency
  • Threaded bowl and element retainer for easy maintenance
  • Bowl seal held captive
  • 20 micron element standard, 10 & 5 available
  • Manual or automatic drains
  • Whirl disc design creates high centrifugal force with minimal pressure drop
  • 1 once bowl capacity
  • High Flow: 25 SCRM @ 80 PSIG with 7 PSI δp
  • Maximum Pressure: 250 PSI
  • Maximum Temperature 200 °F

B01S-3200 Stainless Steel Series

  • 1/2” Regulators
  • All metal compents are 316SS
  • Diaphragm style regulator
  • Relieving and non-relieving verisions available
  • Gauge port plugs included
  • FDA approved Buna seals available
  • Maximum inlt presse: 250 PSIG
  • 10-150 PSI option
  • Temperature rating: 0-175 °F
  • Inlet / outle ports: 1/2” NPT
  • Gauge ports: two 1/8” NPT (standard)

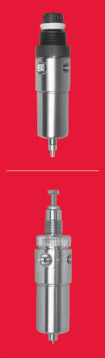

B01S-3209 Stainless Steel Series

  • Miniature Particulate Filter/Regulators
  • NACE MR 0175 Compliant
  • All metal components are 316 SS
  • Available with stainless steel or Acetal bonnet with locking ring
  • Diaphragm design for greater accuracy, responsiveness and repeatability
  • Fluorocarbon seals
  • Threaded bowl and element retainer for easy maintenance
  • Bowl seal held captive
  • Manual or automatic drains
  • 20 micron element standard, 10 & 5 micron element available
  • Available in relieving or non-relieving
  • Pressure range: 10-130 PSI Standard; pressure ranges available:
    • 1-10 PSI
    • 3-30 PSI
    • 5-60 PSI
    • 20-250 PSI
  • Maximum temperature: 200°F

2C05S-1200 Stainless Steel Series

  • 1/2” Particulate Filter/Regulator
  • All metal components are 316 SS threaded bowl for ease of maintenance
  • Threaded bowl for ease of maintenance
  • Filter and regulator consolidated into one assembly
  • Reduces footprint of air prep assembly
  • Manual, float or impulse drains available
  • FDA approved Buna seals available
  • Bowl Capacity: 8 ounces
  • Available in relieving or non-relieving
  • Maximum pressure: metal bowls: 250 PSI
  • Pressure ranges available: 10-130 PSI, 20-250 PSI
  • Maximum temperature: 200°F

C05S-1200 Stainless Steel Serie

  • 1/2” Particulate Filter/Regulator
  • All metal components are 316 SS threaded bowl for ease of maintenance
  • Threaded bowl for ease of maintenance
  • Filter and regulator consolidated into one assembly
  • Reduces footprint of air prep assembly
  • Manual, float or impulse drains available
  • FDA approved Buna seals available
  • Bowl Capacity: 8 ounces
  • Available in relieving or non-relieving
  • Maximum pressure: metal bowls: 250 PSI
  • Pressure ranges available: 10-130 PSI, 20-250 PSI
  • Maximum temperature: 200°F
