SafeLink Wireless Monitoring

Enerpac wireless monitoring systems enable operators of machining centers to monitor fixture pressure and clamp position in real time even when parts are being machined. Monitoring systems can also be used to verify that the operator has properly pressurized the fixture before it is sent inside the machining center.

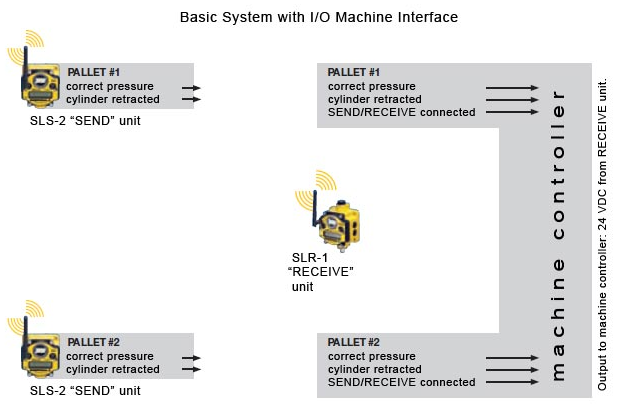

• WIRELESS communication between a fixture circuit and the machine control
• Fixture mounted “SEND” unit uses radio communication to monitor pressure and/or clamp position
• 2.4 GHz Frequency Band for global acceptance
• “Frequency Hopping” used to for signal stability, even in busy production environments
• “SEND” units are easily reassigned to a different “RECEIVE” unit so fixtures can be moved between machines
• No limit to the number of systems used in a production area
• “SEND” units are internally powered by a replaceable 3.6 VDC Lithium battery – provides up to 3-year battery life
• “SEND” units are sealed to IP-67 for protection from contamination and coolant
• LED lights for visual status indication
• LCD Display window for set-up and status display
