Panels: Pneumatic, Electric And Motion Control
K.R. West Company has the ability to build a variety of pneumatic and electric custom control panels. We can work with your company for complete machine integration. See some examples of our in-house custom built controls
![](images/products/krwest/control/ctrl1.jpg)

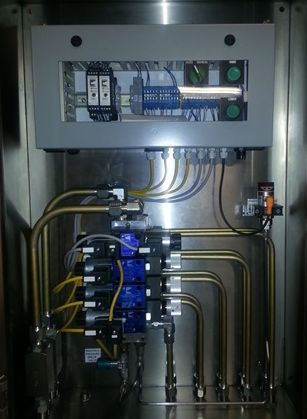

Stainless Steel Hydraulic Control Unit
This hydraulic control system is in a stainless steel enclosure, which makes it a great fit for food processing. This control unit will be used in a cheese plant for cheese packaging.
![](images/products/krwest/control/ctrl2.jpg)

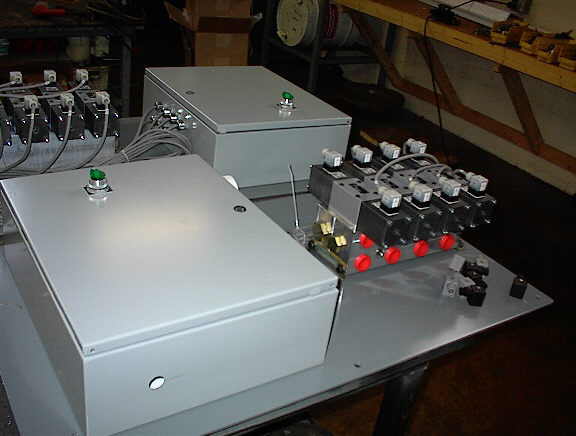

Hydraulic Control Panel
This hydraulic and electric control panel was custom built for the customer specific needs. It is used on a machine that assembles shipping containers by punching and riveting the material.
![](images/products/krwest/control/ctrl3.jpg)

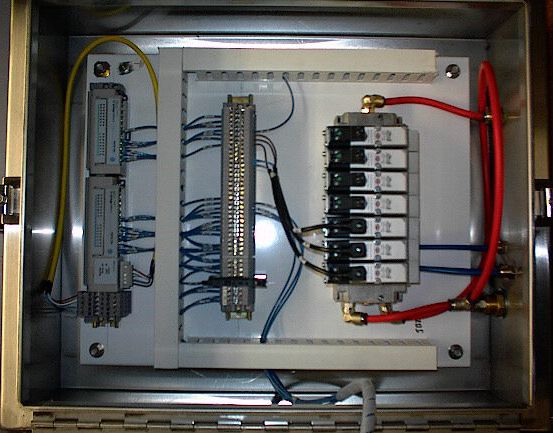

Pneumatic Control Panel
The pneumatic controlled panel unit incorporates air valves for control of multiple cylinders in a meat processing plant.
![](images/products/krwest/control/ctrl4.jpg)

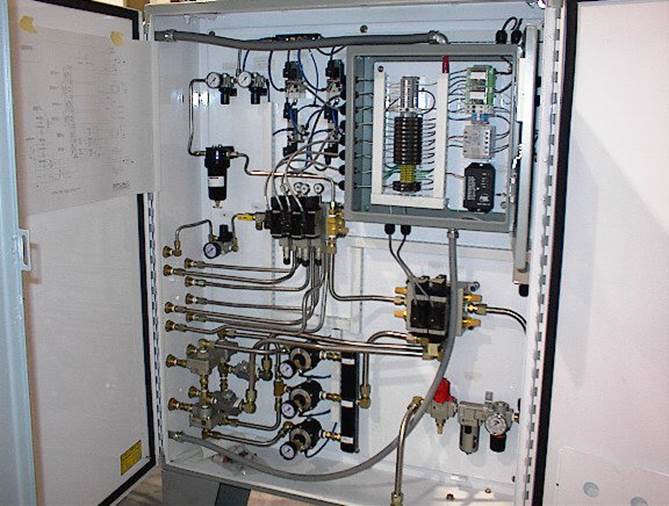

Custom Pneumatic Control Unit
This custom built pneumatic control system is used in a paper mill for control of paper machine winders.
![](images/products/krwest/control/ctrl5.jpg)

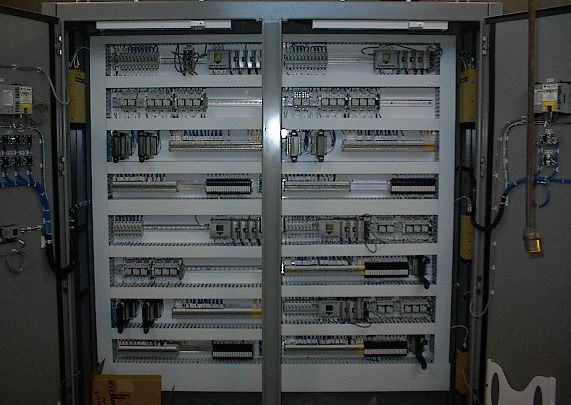

Motion Control System
This motion control system is electrically controlled. This electronic enclosure was built for the control of multiple machines in a cheese processing plant out in California. As you can see in the photo on the right, the enclosure has multiple controls.
![](images/products/krwest/control/ctrl6.jpg)

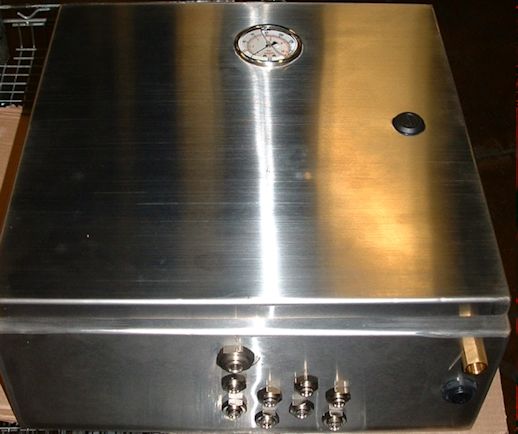

Stainless Steel Pnematic Control Unit
The control panel was built to be used in food processing. The enclosure is made from NEMA 4x stainless steel. The components inside include a Monnier C01-1300 filter/regulator combination with a pulse drain, Murr lighted, pre-mold valve connectors, and Norgren mini ISO valves.
![](images/products/krwest/control/ctrl7.jpg)

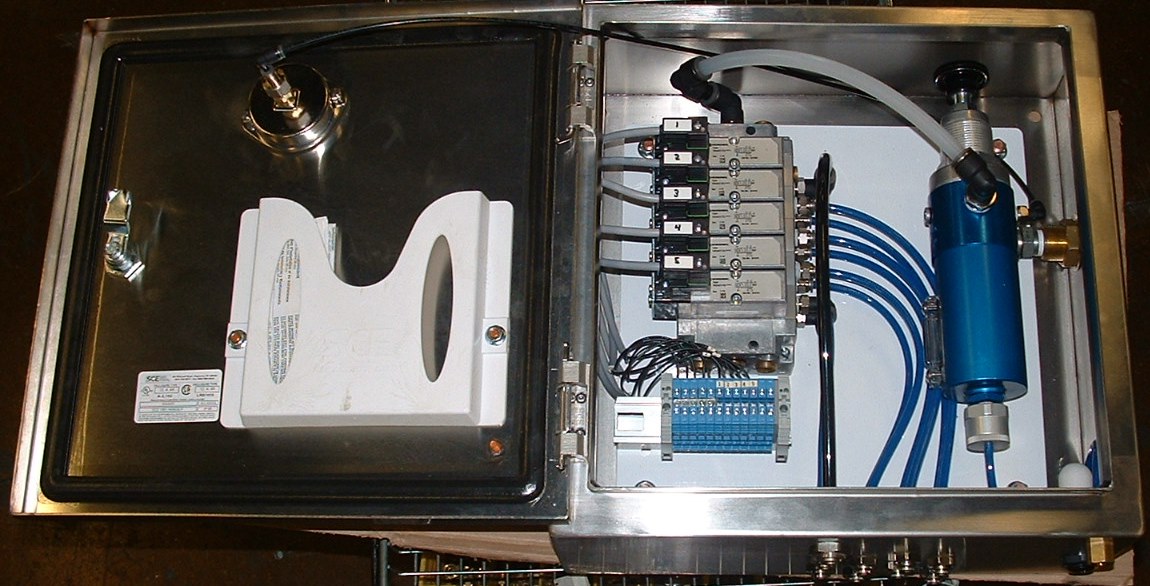

Stainless Steel Pneumatic Control Unit
The control panel was built to be used in food processing. The enclosure is made from NEMA 4x stainless steel. The components inside include a Monnier C01-1300 filter/regulator combination with a pulse drain, Murr lighted, pre-mold valve connectors, and Norgren mini ISO valves.
![](images/products/krwest/control/ctrl8.jpg)

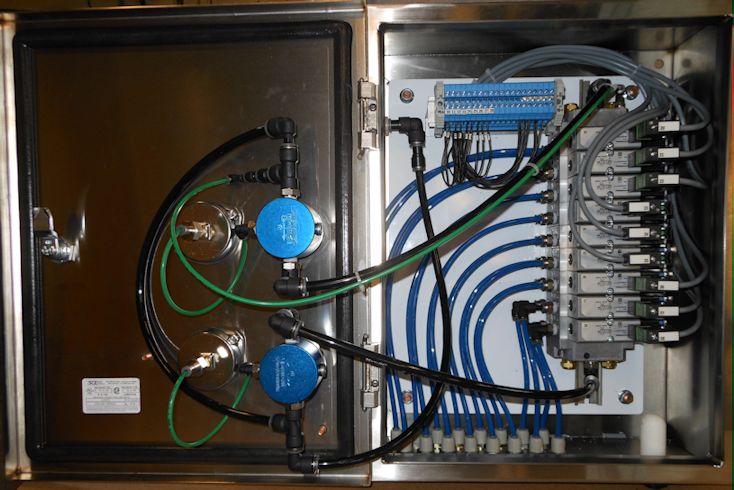

Pneumatic Dual Regulator Control Panel
This pneumatic valve panel includes two 105 series regulators by Monnier.
![](images/products/krwest/control/ctrl9.jpg)

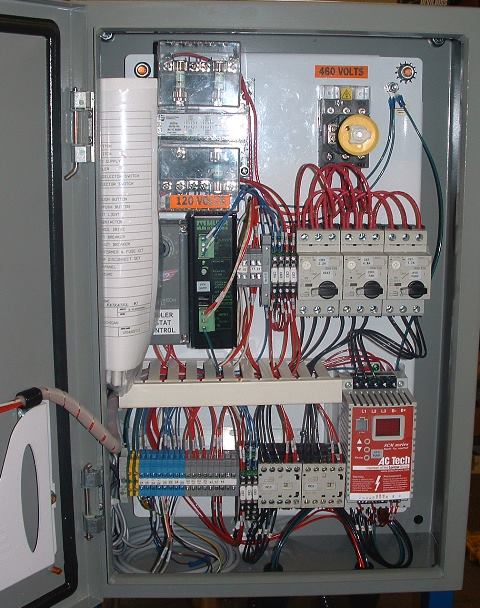

Control Unit With Heating / Filtering System
This unit is a heating / filter unit with controls. The customer’s needs were clean oil and oil at a certain temperature. The control panel has a variable speed drive. The control panel also incorporates system intergration, which allows the box to signal the system. The lubrication is for hydro bearing.
![](images/products/krwest/control/ctrl10.jpg)

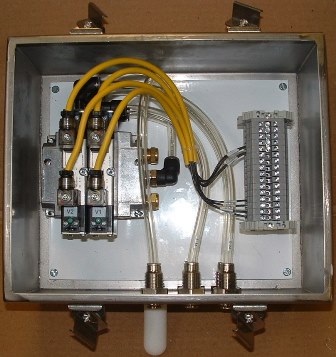

Compact Stainless Steel Pnematic Unit
This compact control unit is pneumatically controlled. It has a stainless steel enclosure and will be used in a food processing plant.
![](images/products/krwest/control/ctrl11.jpg)

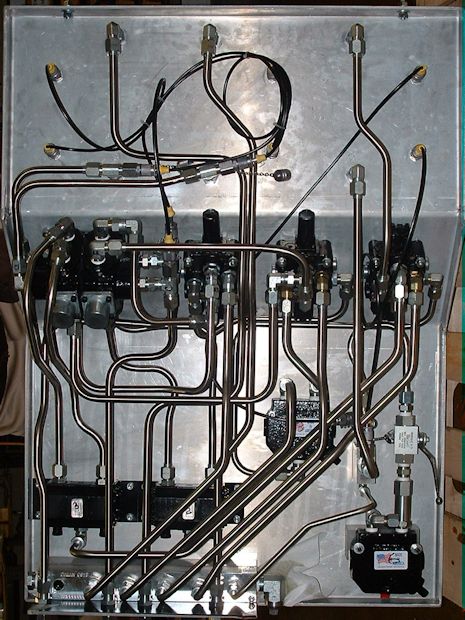

Dual Valve Panels
This is one of two valve panels built to control a K.R. West custom unit. These two power units were built for large diameter pipe seem tester drive systems, which is self-propelled. A pair was built to fit the customer’s needs.
![](images/products/krwest/control/ctrl12.jpg)

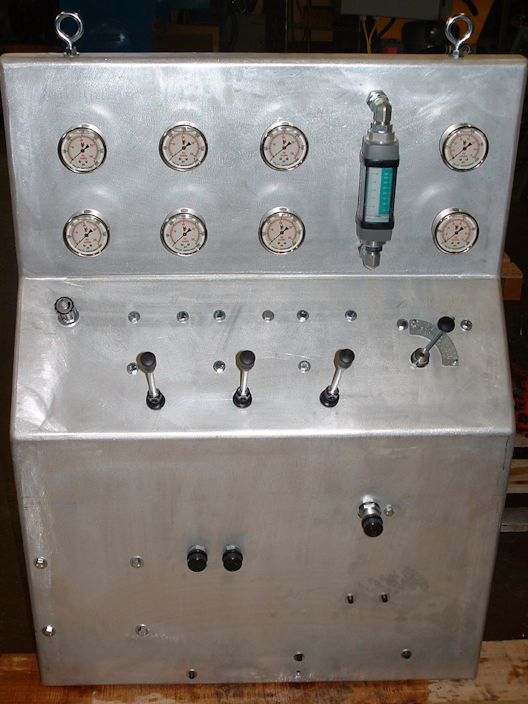

Dual Valve Panels
This is one of two valve panels built to control a K.R. West custom unit. These two power units were built for large diameter pipe seem tester drive systems, which is self-propelled. A pair was built to fit the customer’s needs.
