Series LH – Low Pressure Hydraulic Cylinders

  • Steel Construction
  • 750 to 1500 PSI Hydraulic Service
  • Standard NFPA Mounting Styles
  • 1.5" through 6" Bores Cataloged
  • Larger Bores Available

Milwaukee Series “LH” low pressure hydraulic cylinders are built to perform on the toughest applications. Incorporating a variety of Milwaukee “Exclusive” advanced features, proven through the years, these cylinders will provide a long, maintenance- free service life. Advanced engineering combined with quality materials and expert workmanship contribute to the making of a rugged, top quality hydraulic cylinder.

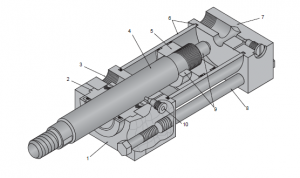

Features

  1. Removable Retainer Plate
    The retainer plate and rod bushings are external removable. On most models, total disassembly of the cylinder is not necessary. Four capscrews securetly hold and lock the retainer plate in place
  2. Rod Bushing and Seals
    A combination of spring loaded multiple lip vee rings with a supporting bronze bushing is standard in Milwaukee Cylinder Series LH Cylinders.
  3. Ports
    Large NPTF cylinder ports are standard and can be located to customer requirements, SAE ports available.
  4. Piston Rod
    The piston rod is of high strength steel, hardened and plated to resist scoring and crrosion, assuring maximum life.
  5. Piston
    The Series LH piston is precision machined from fine grained iron alloy. The piston is fitted and treaded to the rod.
  6. Cylinder Barrel
    The barrel is of chrome plated steel tubing, honed to a fine finish to assure superior sealing, minimum friction and maximum friction and maximum seal life. It is a step cut on the I.D. of both ends for O-Ring seals.
  7. End Caps
    End caps and mountings are of high quality steel, precision machined for accurate mounting.
  8. Tie-Rods
    The tie-rods are constructed from a high quality medium carbon steel. The threads are accurately rolled for rigid engagement of the nuts.
  9. Cushions
    Cushions are machined to close tolerance to provide positive, smooth deceleration at the end of stroke. On all bore sizes, we provide the longest cushion possible, based on the rod size and blind end caps. Longer cushions are available.
  10. Cushion Needle Adjustment
    The cushion needle adjustment valve and cushion-check ball retainer screw are specifically designed to provide full cushion adjustment
