Series MH – Metric Hydraulic Cylinders

  • Steel Construction
  • ISO Standard 6020/2 160 Bar Series
  • Working Pressure Up to 210 Bar
  • Temperature Range 20 °C to 150 °C
  • Cushions at Either or Both Ends
  • Single and Double Rod End Design

Steel Construction ISO Standard 6020/2 160 Bar Series Working Pressure Up to 210 Bar Temperature Range 20 °C to 150 °C Cushions at Either or Both Ends Single and Double Rod End Design Milwaukee Series “MH” hydraulic cylinders are built to perform on the toughest applications. Incorporating a variety of Milwaukee “Exclusive” advanced features, proven through the years, these cylinders will provide a long, maintenance-free service life. Advanced engineering combined with quality materials and expert workmanship contribute to the making of a rugged, top quality hydraulic cylinder. Milwaukee Cylinder MH Metric Cylinders meet ISO Standard 6020/2 160 bar series, including working pressures up to 210 bar.

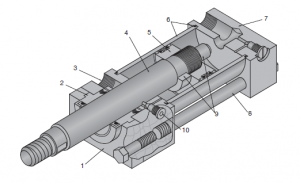

Features

  1. Removeable Retainer Plate
    The retainer plate and rod bushings are external removable. On most models, total disassembly of the cylinder is not necessary. Four capscrews securetly hold and lock the retainer plate in place
  2. Rod Bushing and Seals
    A U-cup Rod Seal with a supporting bronze bushing is standard in Milwaukee Cylinder Series MH Cylinders.
  3. Ports
    BSP/G cylinder ports are standard and can be located to customer requirements. ISO.6149 ports optional.
  4. Piston Rod
    The piston rod is of high strength steel, hardened and plated to resist scoring and crrosion, assuring maximum life.
  5. Piston
    The piston is of fine grained alloy iron, incorporating u-cup seals, ensuring non-leak Hi-Lo pressure performance. The piston is pilot fitted and threaded to the rod.
  6. Cylinder Barrel
    The barrel is of chrome plated steel tubing, honed to a fine finish to assure superior sealing, minimum friction and maximum friction and maximum seal life.
  7. End Caps
    End caps and mountings are of high quality steel, precision machined for accurate mounting.
  8. Tie-Rods
    The tie-rods are constructed from a high quality medium carbon steel. On most sizes the threads are rolled for rigid engagement of the self-locking nuts.
  9. Cushions
    Cushions are machined to close tolerance to provide positive, smooth deceleration at the end of stroke. On all bore sizes, we provide the longest cushion possible, based on the rod size and blind end caps. Longer cushions are available.
  10. Cushion Needle Adjustment
    The cushion needle adjustment valve and cushion-check ball retainer screw are specifically designed to provide full cushion adjustment
